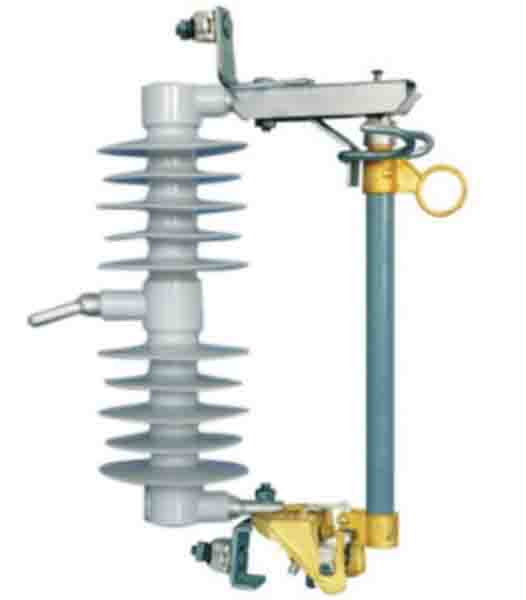

Slicon Fuse Cutout
15KV-27KV



Type

Rated

Voltage(KV)

Rated

current(A)

Breaking

current(A)

Impulse

voltage(BIL)

Power-frequency

withstand

voltage

Creepage

distance(MM)

Weight(KG)

Dimensions(CM)

Xin-g

24

100

10000

150

50

620

7

51×33.5×16.5

Xin-h

24

200

12000

150

50

620

7

51×33.5×16.5

TECHNICAL PARAMETERS
